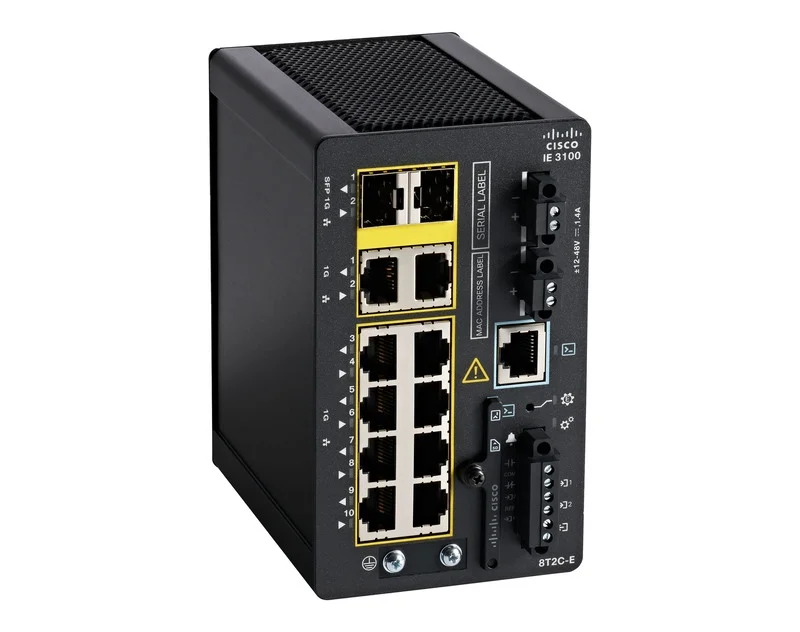

Cisco Catalyst IE3100 series
DIN rail switch expandable up to 20 ports
- Advanced switches for scalable, secure, and resilient network.
- Extended temperature range
- Up to 18 GE downlink and 2 GE dual-media uplink ports
- Industrial protocols, security, and redundancy features
- Cisco SD-Access extended node and advanced industrial features on select models
Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models. Provide secure Zero-Trust Network Access (ZTNA) to industrial assets at scale with Secure Equipment Access.
- Brand
- Cisco
- Type of Ports
- Copper RJ45
- SFP
- Management
- Layer 2 Managed
- Mounting
- DIN Rail
- Min Operating Temperature
- -40 °C
- Speed
- GE
- Number of Ports
- 6
- 10
- 12
- 20
- Max Operating Temperature
- 75 °C
- Input Voltage
- 12 VDC
- 24 VDC
- 48 VDC
- Redundant Power
- Yes
- TSN Support
- No
- Jumbo Frames
- No
- Cisco-Catalyst-IE3100-Rugged-datasheet
- Datasheet 736.14 KB
Modèles disponibles (6)
Cisco IE-3100-4T2S-E
Réf 96245024
Cisco IE-3100-8T2C-E
Réf 96245025
Cisco IE-3100-8T4S-E
Réf 96245026
Cisco IE-3100-18T2C-E
Réf 96245027
Cisco IE-3105-8T2C-E
Réf 96245028
Cisco IE-3105-18T2C-E
Réf 96245029
