iP-8441-MTCP - 96172539

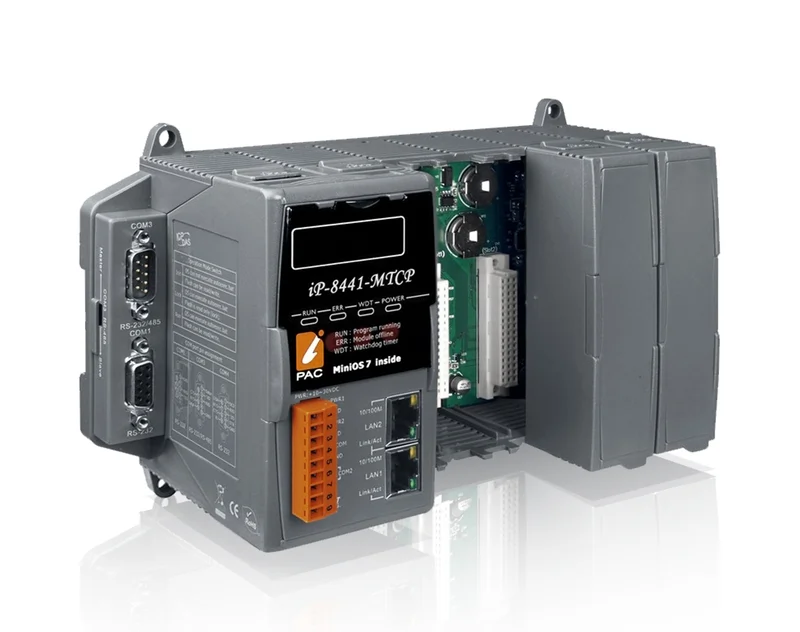

iP-8441-MTCP 4 slots I/O Expansion Unit with Modbus TCP protocol
- Système modulaire incluant des E/S analogique, numérique, relais et compteur
- 4 ou 8 modules par base
- Supporte les protocoles Modbus TCP, Modbus RTU et ASCII
- Watchdog timer intégré avec système auto-reset
- Supporte les modules 8K et 87K
- Plage de temérature d'utilisation de -25 à 75°C
The ICP DAS iP-8441-MTCP and iP-8841-MTCP Modbus TCP I/O expansion units are comprised of four and eight slot backplane options.Users are able to monitor and control their industrial applications with the two independent Ethernet ports, RS232/485 interfaces and support for a MicroSD card. These units are designed to support both Modbus TCP and Modbus RTU protocols.
The IP-8441 and IP-8841-MTCP support over 50 I/O modules, including analog input/output, digital input/output, counter input and frequency input. These units can easily and quickly be integrated with SCADA software to build a complete data acquisition system.
View the ICP DAS I-8K and ICP DAS I-87K remote I/O modules available for the ICP DAS IP-8441/8441-MTCP series.
- Brand
- ICP DAS
- Connectivity
- Ethernet
- Slots
- 4
- Protocol
- Modbus RTU/ASCii
- Modbus TCP
- Hot Swap Modules
- No
- Auto Configuration
- Yes
- iP-8441-MTCP Datasheet
- Datasheet 974.49 KB
