ICP DAS M-7000 Series
Unités d'E/S ICP DAS analogiques et numériques distantes, RS485
- Modules déportés RS485
- E/S modulaires et flexibles avec compteurs, relais, ANA ou TOR
- Logiciel suppoortant les commandes ASCII directes avec DLL 32 bits
- Communication jusqu'à 1.2km sans répéteur
- Connexion sur borniers à vis débriochables
- Nouveau modèle robuste avec plage de température accrue et grande immunité aux bruits
- Isolation entre module : 3000 VDC
- Protection haute tension sur modules M-7017R, M-7018R, M-7019R, M-7055
- Tension d'entrée jusqu'à 50VDC sur module M-7055
- Protection de courant de court-circuit sur module de sorties TOR M-7055
- Détection fil coupé pour mesure RTD sur mlodules M-7015, M-7033
- Voies paramétrables individuellement sur M-7015, M-7019R"
The ICP DAS M-7000 series of remote data acquisition and control modules are designed for use in PC based industrial applications. They are ideal for monitoring, control and automation of most mechanical or electrical equipment. They can be used with thermocouples, RTD sensors, pressure, flow, voltage, current and TTL compatible digital signals.
All modules with Modbus communications can also use ASCII communications. In addition they have open circuit detection, and can have different settings for each input channel.
Each network of M-7000 modules will require an I-75xx (converter) to convert from RS485 to the PC serial port.
- Signal
- Analogue
- Digital
- Multifunction
- Communication
- Brand
- ICP DAS
- On board Logic
- No
- Connectivity
- Serial
- Protocol
- DCON
- Modbus RTU/ASCii
- Channels
- 2
- 3
- 4
- 6
- 7
- 8
- 9
- 12
- 16
- 20
- I/O Direction
- Inputs
- Outputs
- Inputs & Outputs
- Resolution
- 16bit
- m-7011-7018_datasheet
- Datasheet 90.32 KB
- m-7017_series_datasheet
- Datasheet 360.88 KB
- m-7022_7024_datasheet
- Datasheet 410.05 KB
- m-7058_m-7059_data_sheet
- Datasheet 195.65 KB
- i-7560
- Datasheet 172.17 KB
- i-7520_7520a_7520r_7520ar
- Datasheet 491.02 KB
- m-7005-14d_datasheets
- Datasheet 260.36 KB
- m-7015-33_datasheets
- Datasheet 262.68 KB
- m-7016_datasheet
- Datasheet 256.38 KB
- m-7018-19_datasheets
- Datasheet 396.60 KB
- m-7045_datasheet
- Datasheet 93.15 KB
- m-7050-55_datasheets
- Datasheet 293.11 KB
- m-7061-67_datasheets
- Datasheet 281.83 KB
- m-7080-88_datasheets
- Datasheet 232.79 KB
- m7041-53_datasheets
- Datasheet 112.48 KB
- ICP-DAS-datasheet-i-2542-a_cr
- Datasheet 1.47 MB
- ICP-DAS-datasheet-I-7510_I-7510A_I-7510AR_I-7510P
- Datasheet 936.15 KB
- ICP-DAS-datasheet-i-7551-cr
- Datasheet 1.20 MB
- ICP-DAS-datasheet-i-7560-cr
- Datasheet 637.80 KB
- ICP-DAS-datasheet-tm-7561_cr
- Datasheet 2.65 MB
- ICP-DAS-datasheet-i-7561-cr
- Datasheet 973.86 KB
Modèles disponibles (59)
M-7011
Réf 96113057
M-7011 One-channel Thermocouple Input Module
M-7019R
Réf 96113059
M-7019R 8-channel universal Analog Input Module with High voltage Protection
M-7015
Réf 96113060
M-7015 6-channel RTD Input Module
M-7033
Réf 96113061
M-7033 3-channel RTD Input Module
M-7033D
Réf 96113062
M-7033D 3-channel RTD Input Module with LED display
M-7005
Réf 96113063
M-7005 8-channel Thermistor Input and 6 channel Alarm Output Module
M-7016
Réf 96113064
M-7016 2-channel Strain Gauge Input Module
M-7016D
Réf 96113065
M-7016D 2-channel Strain Gauge Input Module with LED display
M-7022
Réf 96113066
M-7022 2-channel 12-bit Analog Output Module (channel to channel isolation)
M-7024
Réf 96113067
M-7024 4-channel 14-bit Analog Output Module
M-7041
Réf 96113068
M-7041 14-channel Isolated Digital Input Module with 16-bit Counters
M-7041D
Réf 96113069
M-7041D 14-channel Isolated Digital Input Module with 16-bit Counters with LED display
M-7052
Réf 96113070
M-7052 8-channel Isolated Digital Input Module with 16-bit Counters
M-7052D
Réf 96113071
M-7052D 8-channel Isolated Digital Input Module with 16-bit Counters with LED display

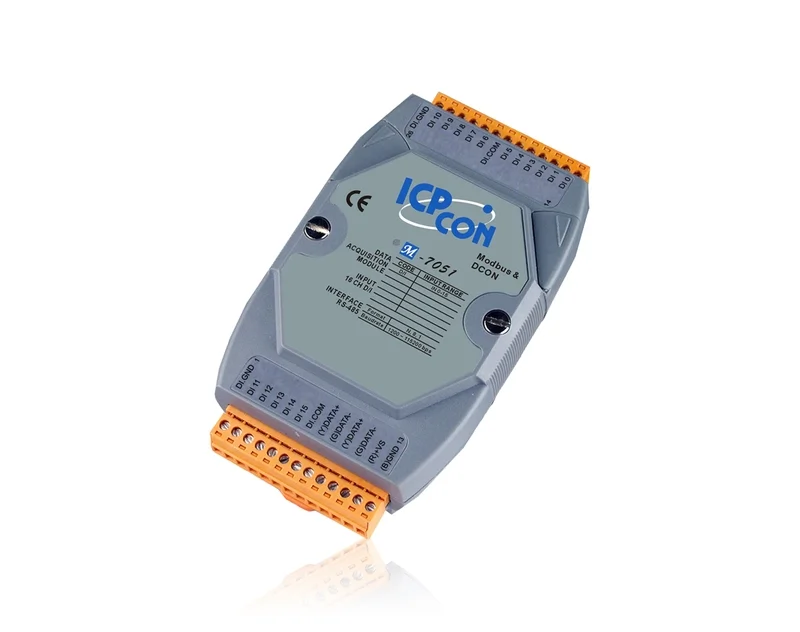

M-7051
Réf 96113072
M-7051 16-channel Isolated Digital Input Module with 16-bit Counters
M-7051D
Réf 96113073
M-7051D 16-channel Isolated Digital Input Module with 16-bit Counters with LED display
M-7053
Réf 96113074
M-7053 16-channel Non-Isolated Digital Input Module with 16-bit Counters
M-7053D
Réf 96113075
M-7053D 16-channel Non-Isolated Digital Input Module with 16-bit Counters with LED display
M-7045
Réf 96113076
M-7045 16-channel Source Type Isolated Digital Output Module
M-7045D
Réf 96113077
M-7045D 16-channel Source Type Isolated Digital Output Module with LED display
M-7045-NPN
Réf 96113078
M-7045-NPN 16-channel Open Collector Isolated Digital Output Module
M-7045D-NPN
Réf 96113079
M-7045D-NPN 16-channel Open Collector Isolated Digital Output Module with LED display
M-7050
Réf 96113080
M-7050 7-Ch Sink Type Non-Isolated DI & 8-Ch Sink Type Non-Isolated DO Module with 16bit Counters
M-7050D
Réf 96113081
M-7050D 7-Ch Sink Type Non-Isolated DI & 8-Ch Sink Type Non-Isolated DO Module with 16bit Counters with LED display
M-7055
Réf 96113082
M-7055 8-Ch Isolated DI & 8-Ch Isolated DO Module with 16-bit Counters
M-7055D
Réf 96113083
M-7055D 8-Ch Isolated DI & 8-Ch Isolated DO Module with 16-bit Counters with LED display
M-7055-NPN
Réf 96113084
M-7055-NPN 8-Ch Isolated DI & 8-Ch Isolated DO Module with 16-bit Counters
M-7055D-NPN
Réf 96113085
M-7055D-NPN 8-Ch Isolated DI & 8-Ch Isolated DO Module with 16-bit Counters with LED display
M-7058
Réf 96113086
M-7058 8-channel 80-250VAC Isolated Digital Input Module with 16-bit Counters
M-7058D
Réf 96113087
M-7058D 8-channel 80-250VAC Isolated Digital Input Module with 16-bit Counters with LED display
M-7059
Réf 96113088
M-7059 8-channel 10-80VAC Isolated Digital Input Module with 16-bit Counters
M-7059D
Réf 96113089
M-7059D 8-channel 10-80VAC Isolated Digital Input Module with 16-bit Counters with LED display
M-7060
Réf 96113090
M-7060 4-channel Isolated Digital Input and 4-channel Relay Output Module with 16bit Counters
M-7060D
Réf 96113091
M-7060D 4-Ch Isolated DI & 4-Ch Relay Output Module with 16-bit Counters with LED display
M-7061
Réf 96113092
M-7061 12-channel Relay Output Module
M-7061D
Réf 96113093
M-7061D 12-channel Relay Output Module with LED display
M-7065
Réf 96113094
M-7065 4-channel Isolated Digital Input and 5-channel Relay Output Module with 16bit Counters
M-7065D
Réf 96113095
M-7065D 4-Ch Isolated Dl and 5-channel Relay Output Module with 16-bit Counters with LED display
M-7067
Réf 96113096
M-7067 7-channel Relay Output Module
M-7067D
Réf 96113097
M-7067D 7-channel Relay Output Module with LED display
M-7080
Réf 96113098
M-7080 2 Channel Counter / Frequency Input Module
M-7080D
Réf 96113099
M-7080D Counter / Frequency Input Module with LED display
M-7080B
Réf 96113100
M-7080B Battery backup Counter / Frequency Input Module
M-7080BD
Réf 96113101
M-7080BD Battery backup Counter / Frequency Input Module with LED display
M-7088
Réf 96113102
M-7088 8-Ch Pulse Width Modulation Output & 8-Ch High Speed Counter Module
I-7520
Réf 96113105
I-7520 Isolated RS-232 to RS-485 Converter
I-7520A
Réf 96113106
I-7520A Isolated RS-232 to RS-422/485 Converter
I-7520R
Réf 96113107
I-7520R : RS-232 to Isolated RS-485 Converter
I-7520AR
Réf 96113108
I-7520AR RS-232 to Isolated RS-422/485 Converter
I-7551
Réf 96113109
I-7551 Isolated RS-232 to RS-232 Converter
I-7510
Réf 96113110
I-7510 Isolated RS-485 Repeater
I-7510A
Réf 96113111
I-7510A Isolated RS-422/485 Repeater/Converter
I-7510AR
Réf 96113112
I-7510AR Three Way Isolated RS-422/485 Repeater/Converter
I-7561
Réf 96113114
I-7561 USB to Isolated RS-232/422/485 Converter
I-2541
Réf 96113115
I-2541 RS-232/422/485 to Fiber Optic Converter
M-7017Z
Réf 96113307
M-7017Z 10/20-channel Analog Input Module with High Voltage Protection
M-7018R
Réf 96113345
M-7018R 8-channel Analog Input Module with High Over Voltage Protection
M-7019Z-G/S
Réf 96123949
M-7019Z-G/S 10-channel Universal Analog Input Module include M-7019Z module & DB1820 daughter board
M-7018Z-G/S
Réf 96132544
M-7018Z-G/S 10-channel Thermocouple Input Module (includes M-7018Z + DB-1820 Connector
