ICP DAS tET/tPET Series
Modules ICP DAS compacts Ethernet E/S PoE
- Supporte Modbus TCP et protocoles UDP
- Puissant MCU 32 bits intégré
- E/S modulaires et flexibles avec compteurs, relais ANA ou TOR
- Compteurs 32 bits rapides
- Adapté aux dispositifs de mesures hautes fréquences
- Communication filaire
- Faible consommation
- Communication jusqu'à 100m sans switch
- Température d'utilisation -25 °C à +75 °C
The ICP DAS tET/tPET series are compact Ethernet I/O devices designed for remote monitoring and control applications. This series support both Modbus TCP & UDP protocols, which makes them easy to integrate with HMI, SCADA, PLC and other software systems.
This series support advanced peer to peer communication and feature a powerful 32-bit ARM microcontroller that efficiently manages newtwork traffic.
The tPET series also offers an IEEE 802.3af-compliant Power over Ethernet (PoE) support, this series can be powered by using a standard Cat5 Ethernet cable connected to a PoE switch.
- Brand
- ICP DAS
- Signal
- Digital
- I/O Direction
- Inputs
- Inputs & Outputs
- Connectivity
- Ethernet
- Protocol
- Modbus TCP
- Channels
- 4
- 6
- On board Logic
- No
- ICP-DAS-tET_tPET_Datasheet
- Datasheet 12.33 MB
Modèles disponibles (8)
tET-P2A2
Réf 96132538
tET-P2A2 Tiny Ethernet module with 2-ch DI and 2-ch DO (PNP, Source)
tPET-P6
Réf 96132540
tPET-P6 Tiny Power over Ethernet (PoE) module with 6-ch DI
tPET-P2A2
Réf 96132542
tPET-P2A2 Tiny Power over Ethernet (PoE) module with 2-ch DI and 2-ch DO (PNP, Source)
tPET-P2R2
Réf 96132543
tPET-P2R2 Tiny Power over Ethernet (PoE) module with 2-ch DI and 2-ch Form A Relay
tET-P6
Réf 96132536
tET-P6 Tiny Ethernet module with 6-ch DI
tET-P2C2
Réf 96132537
tET-P2C2 Tiny Ethernet module with 2-ch DI and 2-ch DO (NPN, Sink)

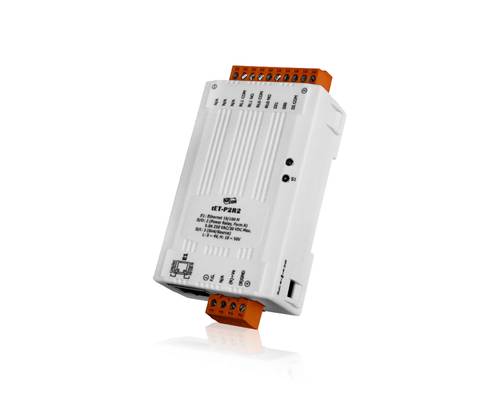

tET-P2R2
Réf 96132539
tET-P2R2 Tiny Ethernet module with 2-ch DI and 2-ch Form A relay
tPET-P2C2
Réf 96132541
tPET-P2C2 Tiny Power over Ethernet (PoE) module with 2-ch DI and 2-ch DO (NPN, Sink)
