Amplicon Impact 4000 series
PC industriel 19" Rackable 4U bus passif
- 3x slots d'extension PCIe x16
- Port Ethernet Gigabit
- 8x USB ports
- 4x SATA ports (RAID 0/1/5/10)
- Chassis pouvant accueillir jusqu'à 5 disques 3,5"

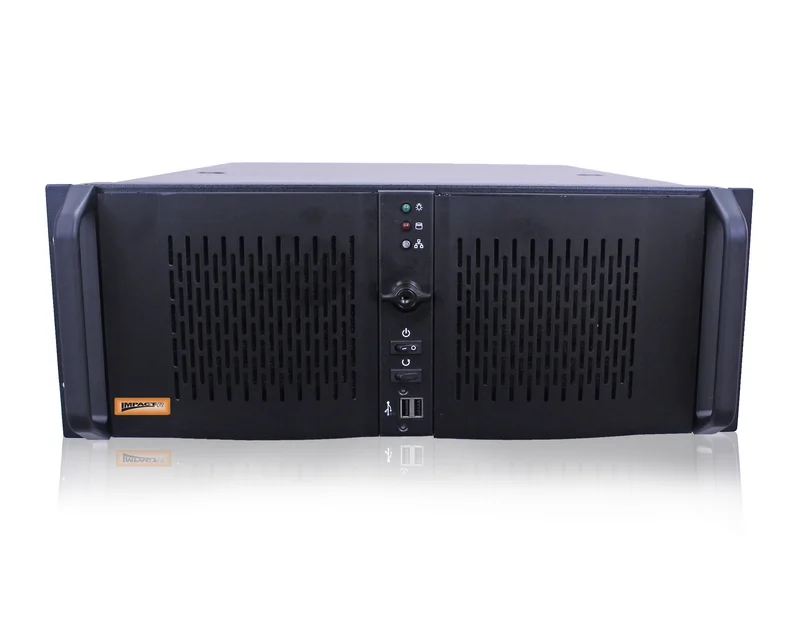

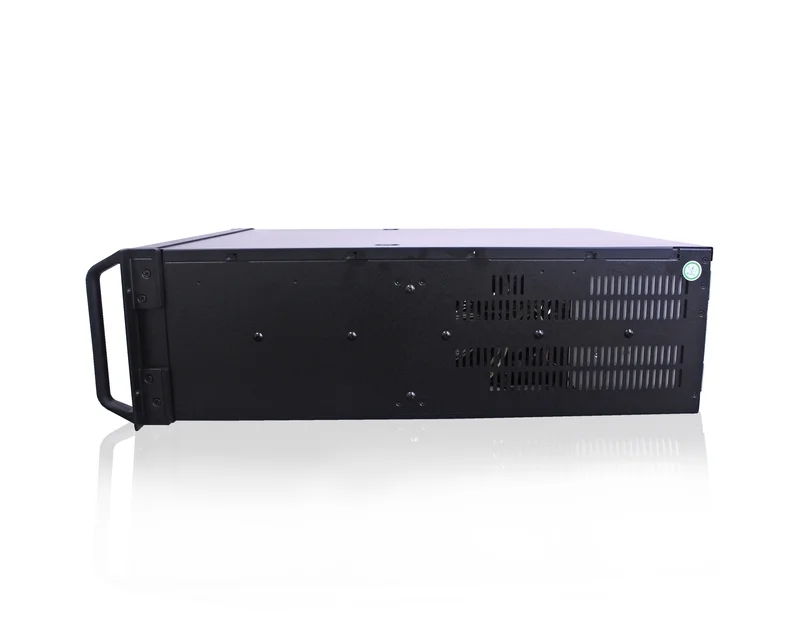

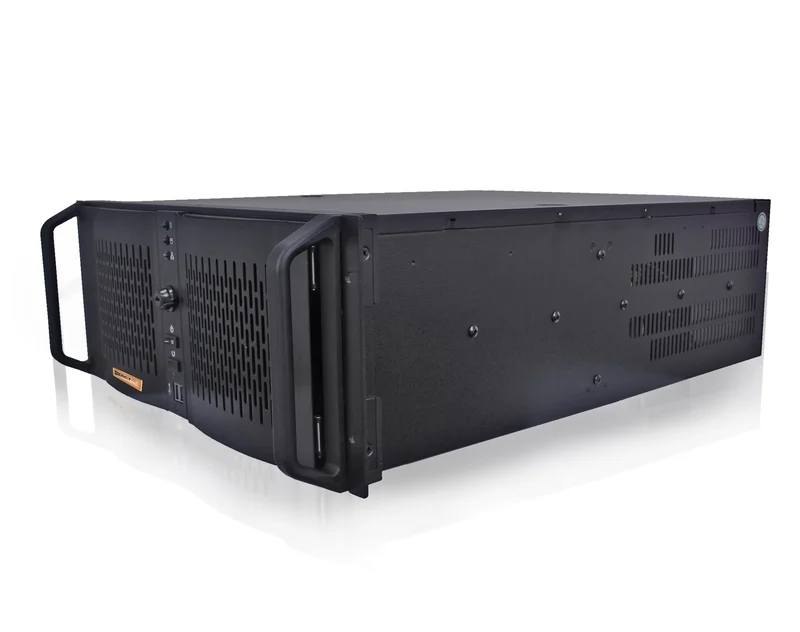

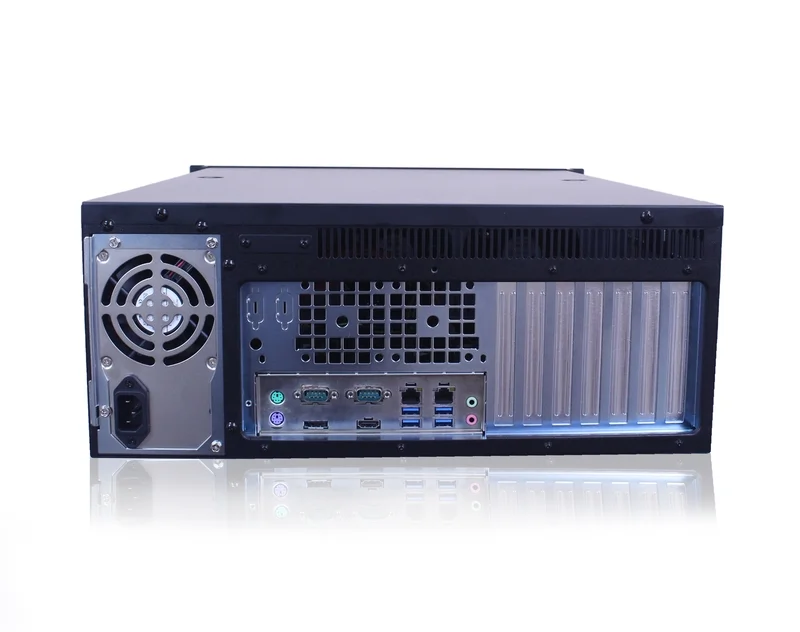

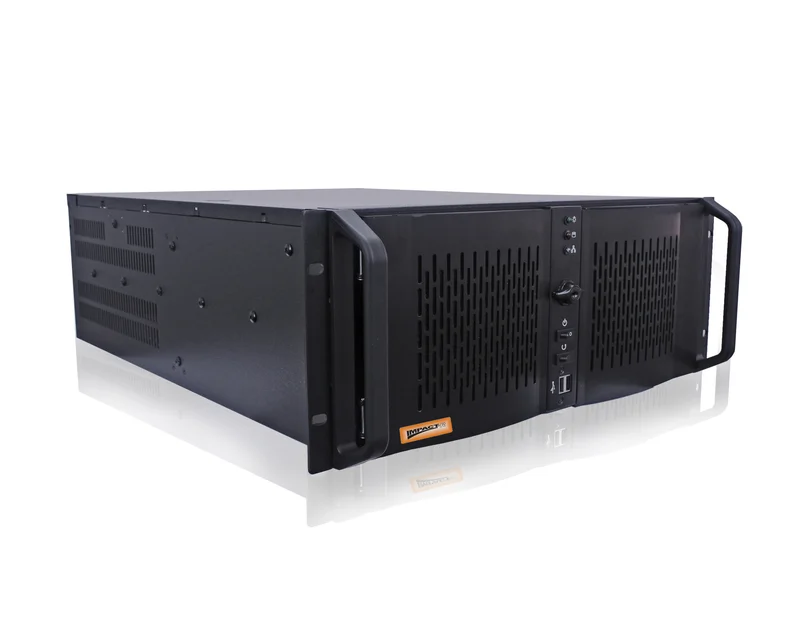

The Amplicon Impact 4000 Industrial PC comprises 4U rackmount computers with Intel motherboards and industrial grade components including the power supply and heavy-duty steel chassis.
The Impact 4000 rugged computers support up to 4 x 3.5" HDDs. As with all our other industrial computers, they can be tailored to suit customer requirements.
- Chassis Size
- 4 U
- Chipset
- Intel® B660
- Memory Type
- DDR4
- OS Support
- Windows 11
- Linux
- Windows 10
- Windows 10 IoT
- CPU
- Core i5
- Core i7
- Core I9
- Memory
- 8 GB
- Max Operating Temperature
- 45 °C
- CPU Generation
- 12th (Alder Lake)
- Mounting
- Rack
- Expansion
- PCIe
- M.2
- Storage
- 128GB SSD
- CPU Cores (Physical)
- 6
- 8
- Chassis depth
- Standard depth
- Brand
- Impact
- Impact_4120
- Datasheet 2.69 MB
- Amplicon-2U_to_4U-slide-rail-datasheet
- Datasheet 571.48 KB
Modèles disponibles (3)
Amplicon Impact 4123
Réf 97221697
3PCIe x16 (x16,x4,x1), Intel® Core i5-12500E AL (6C 12T) 8GB RAM 128GB SSD
Amplicon Impact 4124
Réf 97221698
3PCIe x16 (x16,x4,x1), Intel® Core i7-12700E AL (8P/4E 20T) 8GB RAM 128GB SSD
Amplicon Impact 4125
Réf 97221699
3PCIe x16 (x16,x4,x1), Intel® Core i9-12900E AL (8P/8E 24T) 8GB RAM 128GB SSD
