Amplicon Impact-D 100AL-A series
PC RailDIN compact et léger équipé de processeurs Intel ATOM E3900 (plage de température allant de -40 à 60°C).
- Processeur de la famille Atom™ E3900
- Connectivité Wi-Fi
- Supporte jusqu’à 8Go DDR3L de RAM
- Intègre USB 3.0 et SATA III
- Alimentation CC (via borne à vis)
- Windows 10 et Ubuntu 18.04
- Température d'utilisation: -40°C à +75°C
The Amplicon Impact-D 100AL-A fanless embedded PC features the Intel® ATOM™ E3900 generation processors, supported by high bandwidth DDR3L memory, and is a perfect solution for a DIN Rail PC.
With an extremely compact design weighing 1.3kg, this unit is ideal for installations where space is at a premium. The tiny footprint still allows for rich I/O along with added support for Wi-Fi connectivity. All systems come with free software for remote access, monitoring and control.
The Apollo Lake processors provide 4K immersive graphics and fast video acceleration, making the Impact-D 100AL an exceptional solution for the most demanding media output tasks.
The Impact-D 100AL-A embedded PC system is suited to applications in markets such as transportation, security and automation.
- CPU
- ATOM®
- Memory
- 4 GB
- OS Support
- Linux
- Windows 10
- Windows 10 IoT
- Expansion
- M.2
- Storage
- 64GB SSD
- Memory Type
- DDR3
- CPU Generation
- Apollo Lake
- CPU Cores (Physical)
- 4
- Max Memory
- 8 GB
- Mounting
- DIN Rail
- Wall
- Brand
- Impact-D
- Impact-E_D_T_P_roadmap
- Roadmaps 3.36 MB
Modèles disponibles (2)

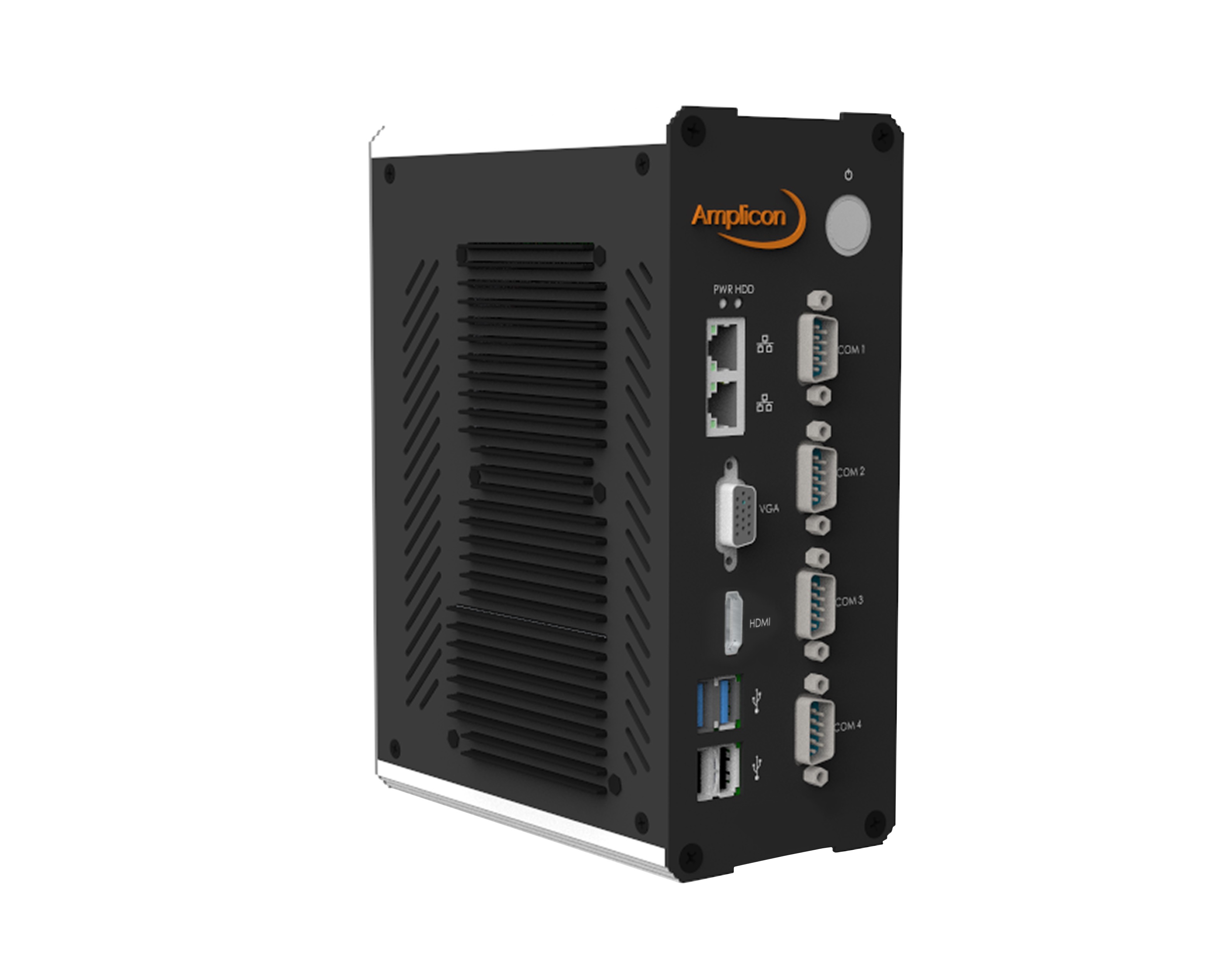

Impact-D 101AL-A
Réf 97220646

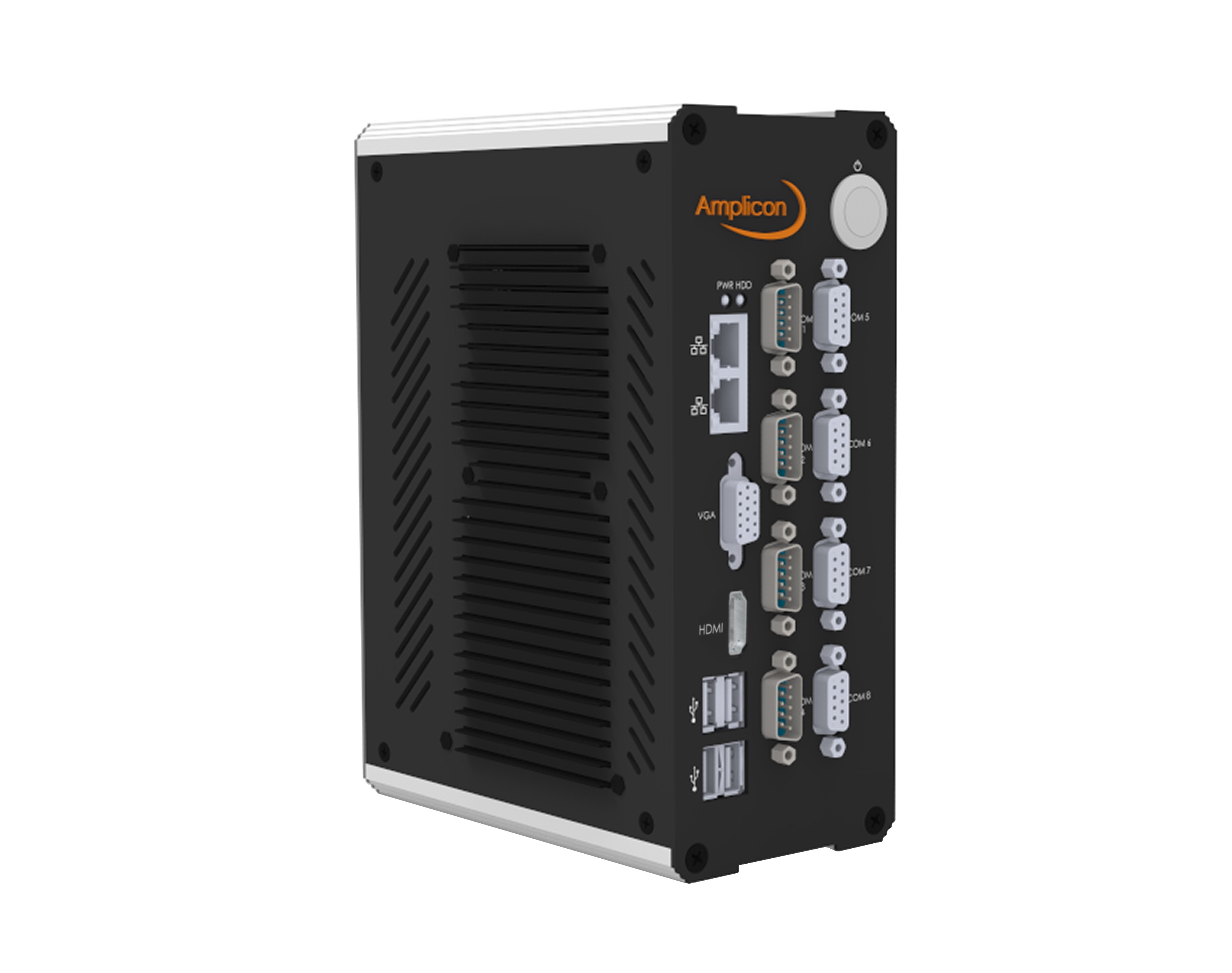

Impact-D 102AL-A
Réf 97220647
