Ce produit n’est plus disponible
Impact-E 423 - 97140548
Impact-E 423 - 1 x PCIe, 3 x PCI expansion, i5-3610ME, 2GB DDR3, 32GB SSD BaseKit Iss F
- Mobile 3rd Generation iCore processor
- Supports up to 16GB DDR3/DDR3L RAM
- Supports Intel iAMT 8.0
- Intègre USB 3.0 et SATA III (JBOD, RAID 1/0)
- Supports 3 independant displays (DVI-I, DVI-D & HDMI) at 1920 x 1200
- Plusieurs options d'extension
- Alimentation CC (via borne à vis)

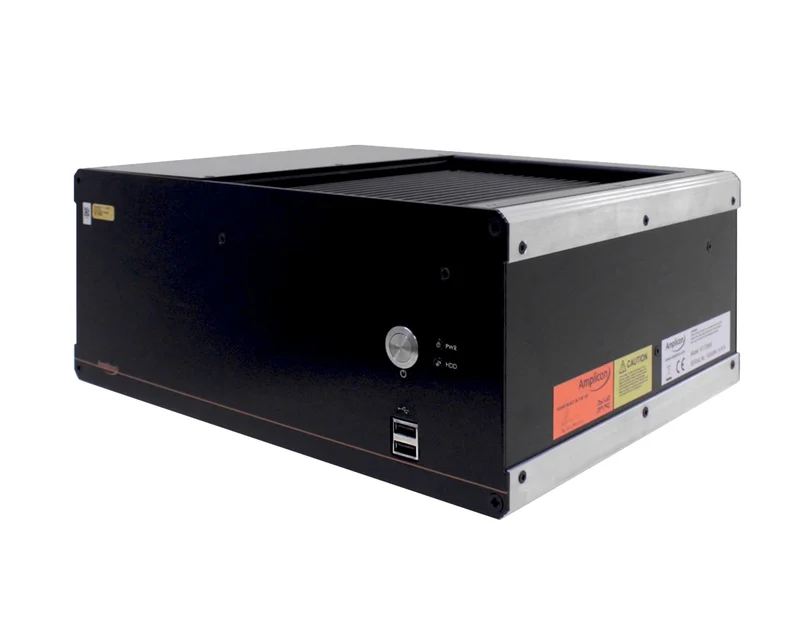

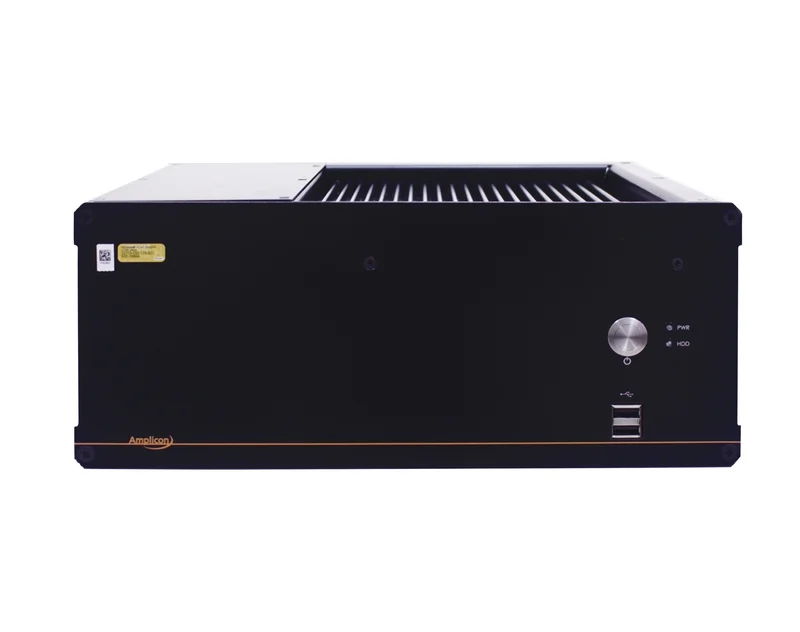

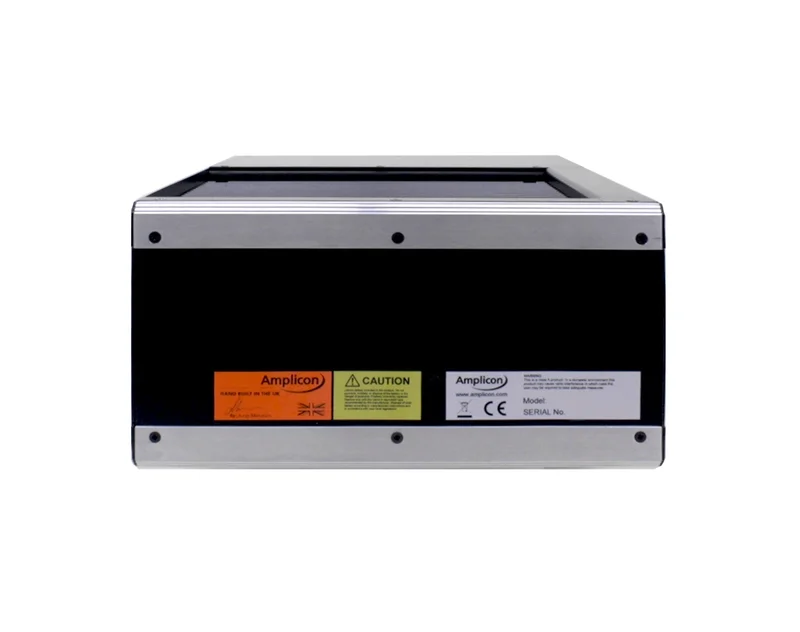

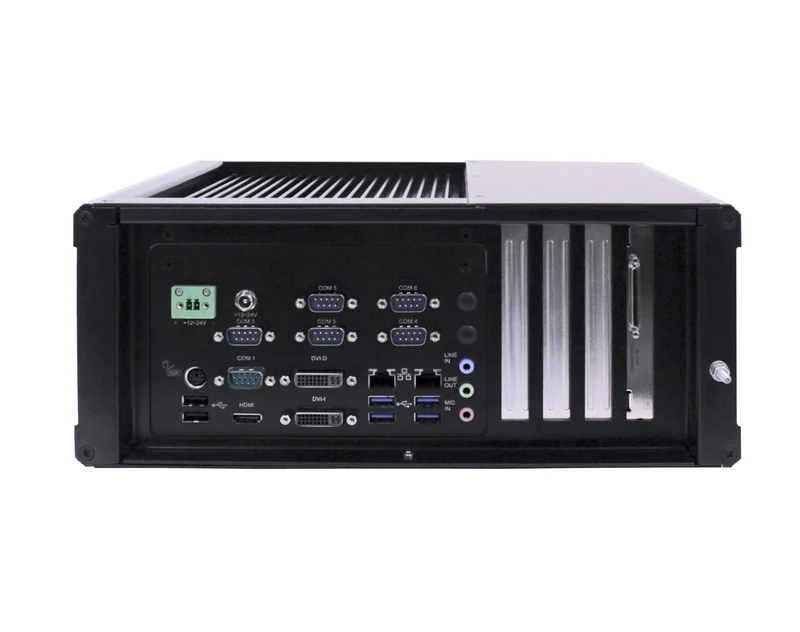

The Amplicon Impact-E 400 fanless embedded PC is available with the Intel® mobile 3rd generation iCore processors. Memory support includes high bandwidth DDR3 1600MHz or DDR3L 1333MHz memory.
With 4 expansion slots, this system builds on the reliability and stability of the Impact-E 200 and 300. The Impact-E 400 supports 2 x 2.5" HDD/SSD configured as RAID 1/0, or as single drives. This unit also offers optional expansion for one or 2 mPCIe half length WiFi modules.
The Impact-E 400 embedded PC system is suited to applications in various markets such as transportation, security and automation.
- CPU
- Core i5
- Memory
- 2 GB
- OS Support
- Windows 10
- Windows 10 IoT
- Windows 7
- Windows Emb Std 7
- Windows XP
- Linux
- Expansion
- mPCIe
- PCIe
- PCI
- Storage
- 32GB SSD
- Memory Type
- DDR3
- CPU Generation
- 3rd (Ivy Bridge)
- CPU Cores (Physical)
- 2
- Max Memory
- 16 GB
- Mounting
- Wall
- Impact-E 423 Datasheet
- Datasheet 1.65 MB
Réf: 91140892 | S/W - Windows Embedded 7 Standard P license (x86/x64) |
Réf: 96160455 |
Accessory - 12V adapter (requires 90924535)
Accessory - 12V adapter (requires 90924535) For impactD series add Phoenix connector |
Réf: 17140528 |
Impact-E 400 - Mounting Plate
Impact-E 400 - Mounting Plate (Dwg Iss B) |
Réf: 17160147 | Accessory - 19" rackmount kit for Impact-E 400 |
